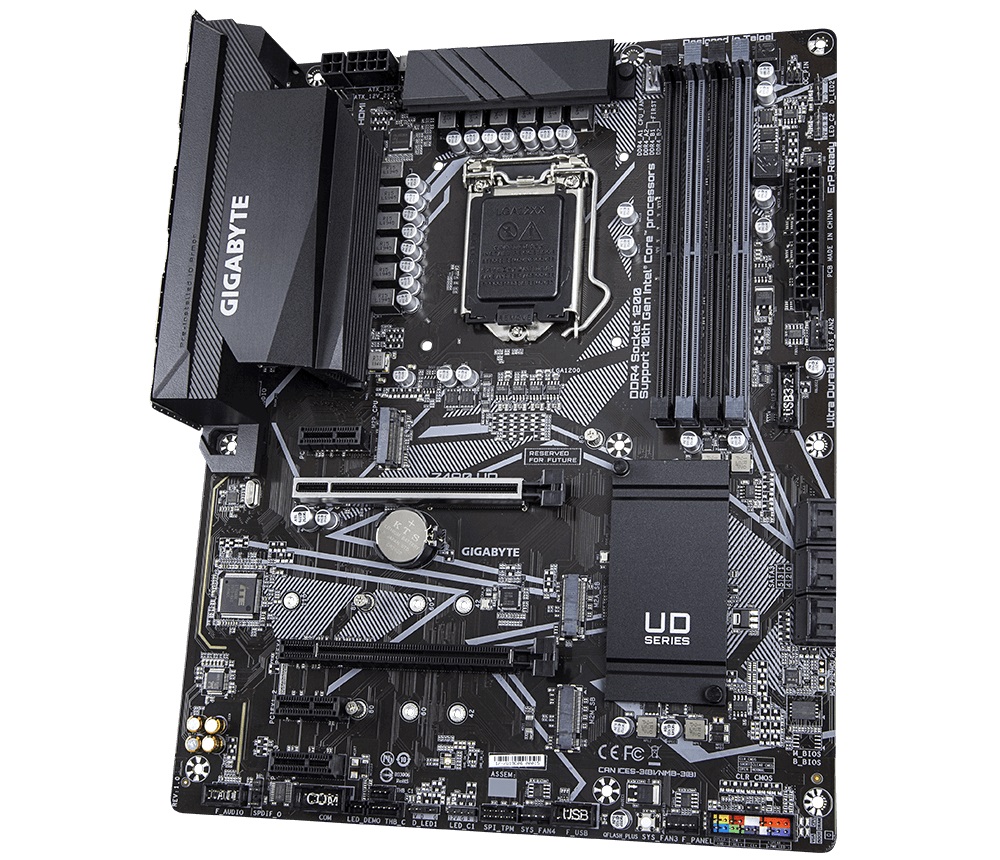

Main Gigabyte Z490 UD, mới 98%

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z490 UD

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 128 GB
Intel® Core™ i9/i7 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x 8-pin ATX 12V power connector
4. 1 x CPU fan header
5. 4 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 1 x Q-Flash Plus button
9. 6 x SATA 6Gb/s connectors
10. 2 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x S/PDIF Out header
14. 1 x USB 3.2 Gen 1 header
15. 1 x USB 2.0/1.1 header
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 2 x Thunderbolt™ add-in card connectors
18. 1 x serial port header
19. 1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 1 x USB 3.2 Gen 2 Type-A port (red)
4. 5 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

LAN / Wireless

Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
