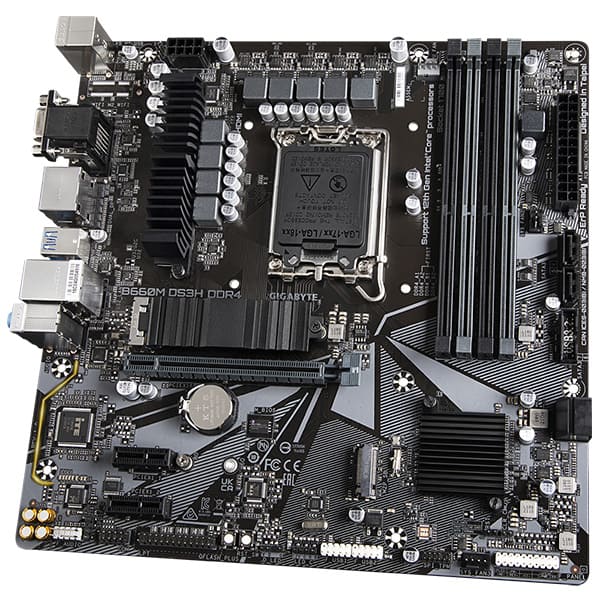

Main Gigabyte B660M-DS3H, mới 98%

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

B660M DS3H DDR4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10


Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x parallel port header

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

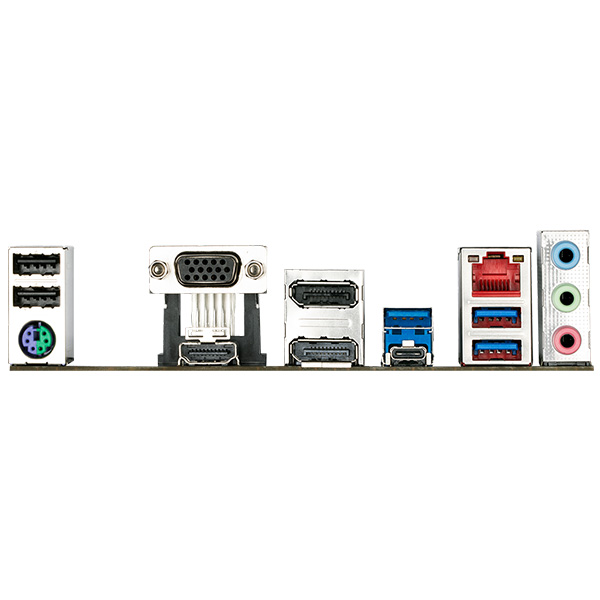

Cổng kết nối (Back Panel)

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x DisplayPorts

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

LAN / Wireless

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
