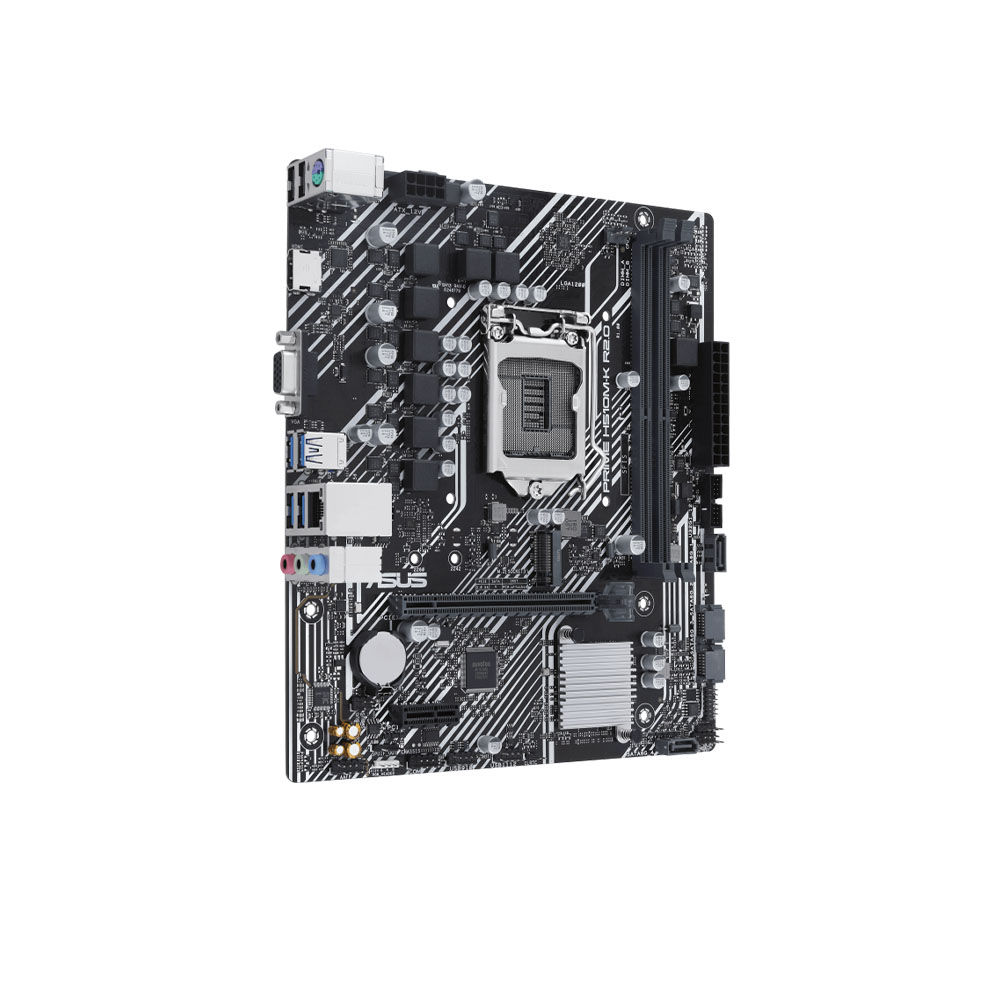

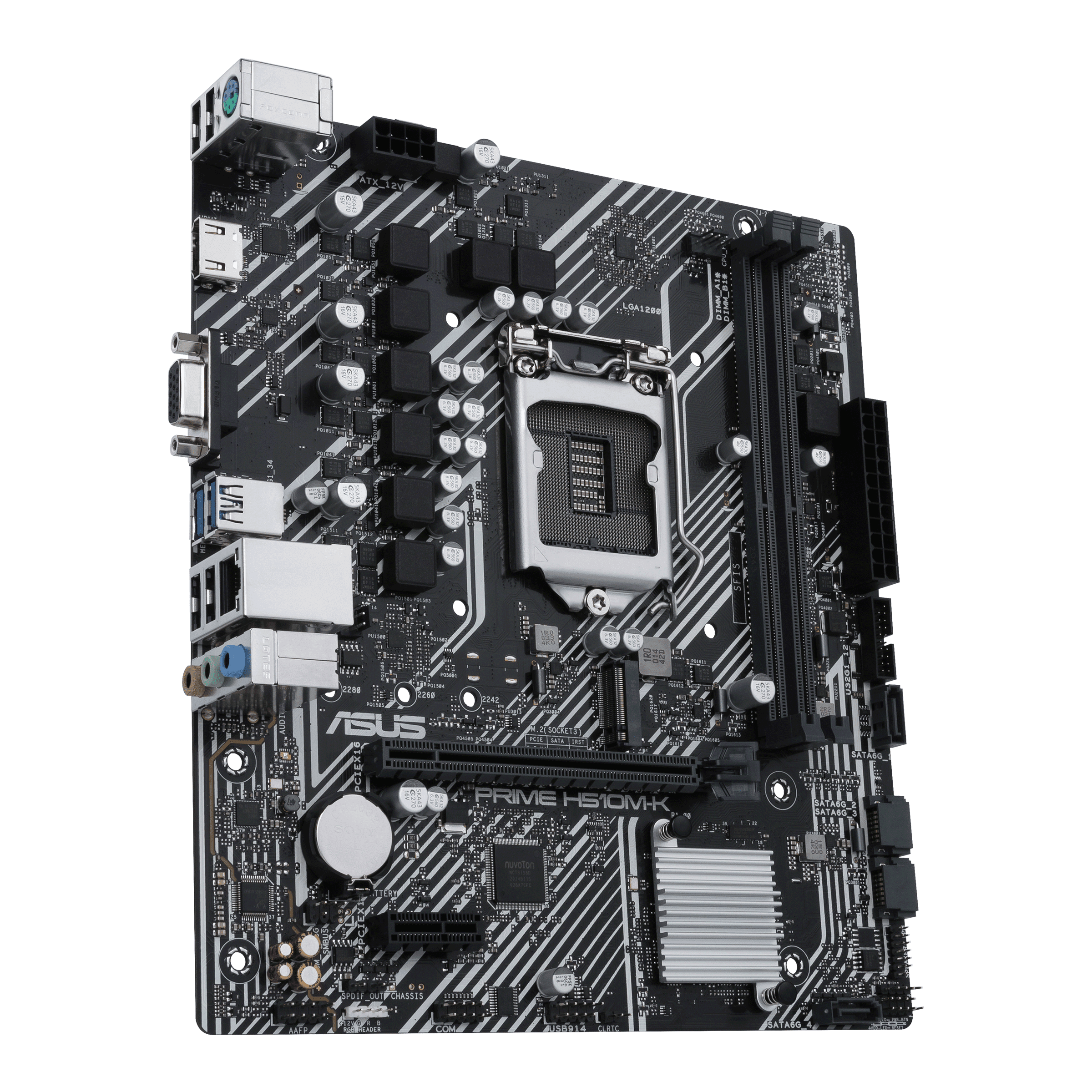

Main Asus H510M-K, mới 98%

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ASUS PRIME H510M-K

CPU hỗ trợ

Intel

Chipset

Intel® H470 Chipset

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* 11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.

Khe cắm mở rộng

Intel® 11th  & 10th  Gen Processors*
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H470 Chipset
1 x PCIe 3.0 x1 slot

Ổ cứng hỗ trợ

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H470 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Realtek 1Gb Ethernet

Kích cỡ

micro-ATX Form Factor
8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
