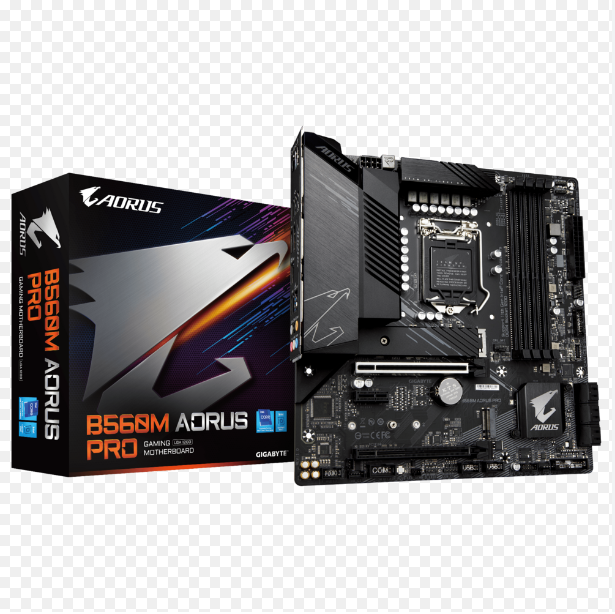

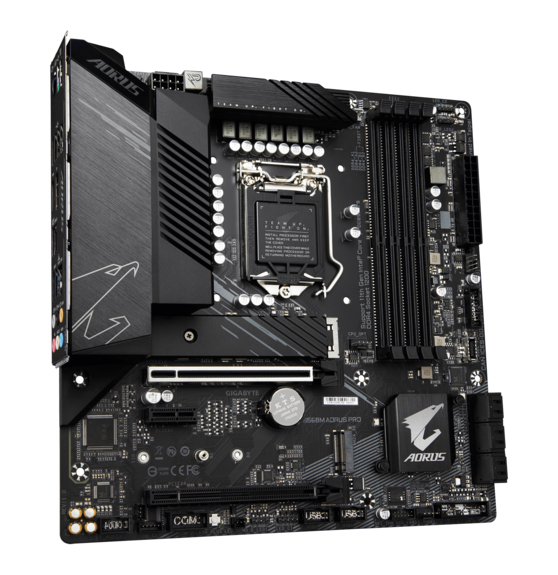

Main Gigabyte B560M Aorus Pro

  • Trong kho:
  • Bảo hành: 36 tháng
Giá bán: 2.650.000 VNĐ

Ưu đãi và quà tặng khuyến mãi:

- Bảo hành siêu tốc - 1 đổi 1

- Vận Chuyển Toàn Quốc

Yên tâm mua xắm tại GH

  • Đội ngũ kỹ thuật tư vấn chuyên sâu
  • Thanh toán thuận tiện
  • Sản phẩm 100% chính hãng
  • Bảo hành 1 đổi 1
  • Giá cạnh tranh nhất thị trường

Thông số kỹ thuật

Model B560M AORUS PRO

CPU hỗ trợ

11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*


* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU

Chipset

Intel® B560 Express Chipset

RAM hỗ trợ

11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Cổng xuất hình onboard

Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.3

Âm Thanh

Realtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel

LAN

Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Đa Card màn hình

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
* Supported by 11th Generation processors only.


Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)


6 x SATA 6Gb/s connectors


* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready

USB

Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support
1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen1 ports on the back panel
2 x USB 2.0/1.1 ports on the back panel


Chipset+USB 3.2 Gen 1 Hub:
1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
2 x USB 3.2 Gen1 ports available through the internal USB header


Chipset+ 2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Cổng kết nối (I/O bên trong)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Cổng kết nối (I/O Phía sau)

1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen2x2 support
1 x USB 3.2 Gen2 Type-A port (red)
2 x USB 3.2 Gen1 ports
6 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Các tính năng độc đáo

Support for APP Center



* Các ứng dụng có sẵn trong Trung tâm APP có thể thay đổi theo mô hình bo mạch chủ. Các chức năng được hỗ trợ của từng ứng dụng cũng có thể khác nhau tùy thuộc vào thông số kỹ thuật của bo mạch chủ.



@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Kích cỡ

ATX Form Factor; 24.4cm x 24.4cm

Đặc điểm nổi bật
